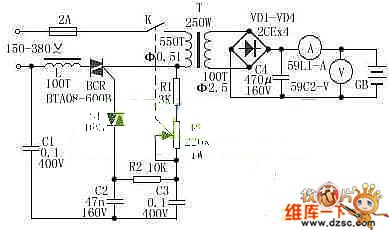

automobile battery charger circuit

Published:2011/6/3 20:10:00 Author:chopper | Keyword: automobile, battery charger | From:SeekIC

There is a automobile battery charger of adjustable type.The charging voltage between 6V and 50V is adjustable,and the maximum charge current can reach 20A.It applies to automobile battery charger of different type,such as 12V,24V,36V and so on.
