CABLE_DRIVE_FOR_VELOCIMETER

Published:2009/7/17 3:02:00 Author:Jessie | From:SeekIC

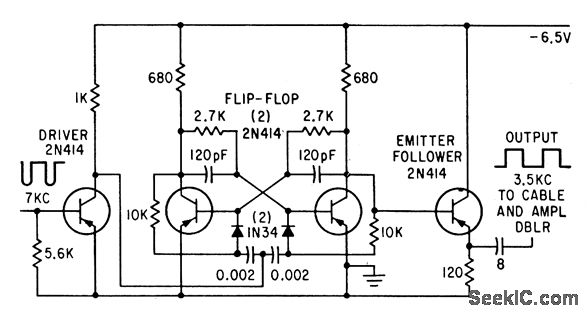

Flip-flop frequency divider converts 7-kc pulse output of velocimeter to 3.5 kc while providing low impedance and sufficient driving power for sending pulses through up to 35,000 feel of cable to counter on surface vessel.-L. Dulberger, Deep-Ocean Velocimeter Aids Sonar Systems Design, Electronics, 34:22, p 41-43.
