Car Nicd Battery charger

Published:2013/3/18 20:51:00 Author:Ecco | Keyword: Car Nicd , Battery charger | From:SeekIC

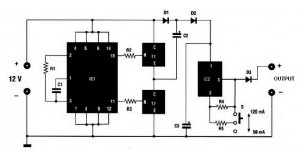

This is a car nicd battery charger circuitthat can chargeanyNi-Cdbatterybetween 4.8 and4.4 voltsfromaclassic12Voltscar battery.Thecharging currentis constantitcan beselected from the values​​of 50 to120mAbythe selectorS. This feature is veryuseful formodel makingenthusiasts,forvideooperators,to those who usesmall appliancestransmissionandreceptionto all thosethat useNi-Cdbatteriesand needto rechargeorvoltagenetworkis not available.
