Charger circuit composed of MAX1501

Published:2011/4/17 8:27:00 Author:Nicole | Keyword: charger | From:SeekIC

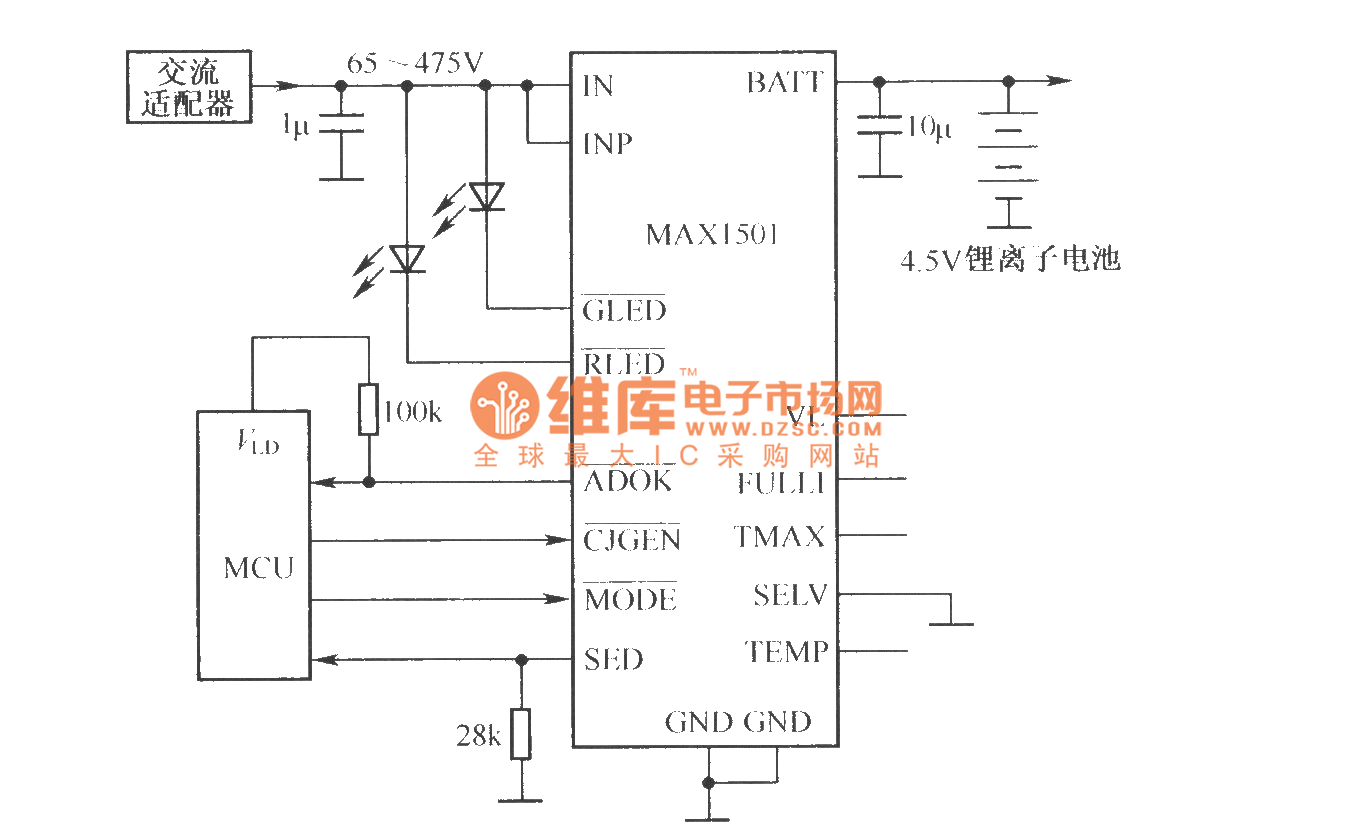

MAX1501 is a new type charge chip, it adopts MAX1501 torealize charger's simple design. MAX1501 can be set to single lithium ion battery charge controller, it also can be set to 3 nodes serial nicad, Ni-MH battery charge controller. The charger circuit composed of MAX1501 is shown as below.
