Published:2011/5/17 4:01:00 Author:Ecco | Keyword: DC , regulated power supply , 2A output | From:SeekIC

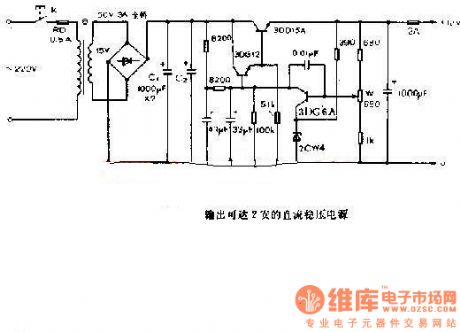

Thisis theDC regulated power supply with constant output in 2A. It is suitable for adjusting voltage of the electrical equipments and TV with 2A current and 12V voltage. The chart shows the circuit:
