DIODE_RELAY_DRIVER_PROTECTION

Published:2009/7/17 2:19:00 Author:Jessie | From:SeekIC

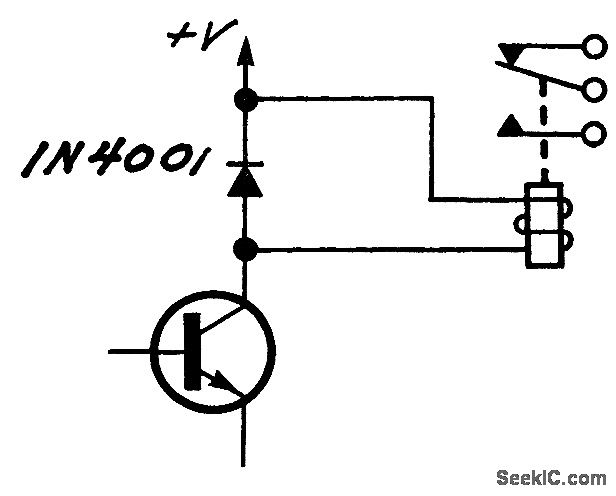

The diode protects the switching transistor from the voltage spike caused by the relay coil.
