DISTANCE_MARK_GENERATOR

Published:2009/7/17 4:19:00 Author:Jessie | From:SeekIC

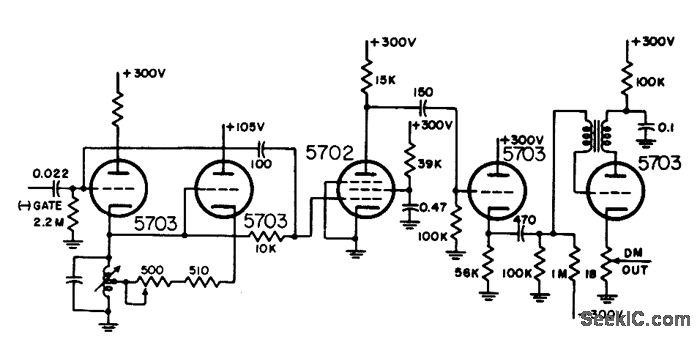

Uses switched Hartley oscillator, pentode amplifier-shaper, and series-triggered blocking oscillator to generate 20-mile distance marks in airborne search radar.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N8-2.
