DISTANCE_MARK_GENERATOR_2

Published:2009/7/17 5:07:00 Author:Jessie | From:SeekIC

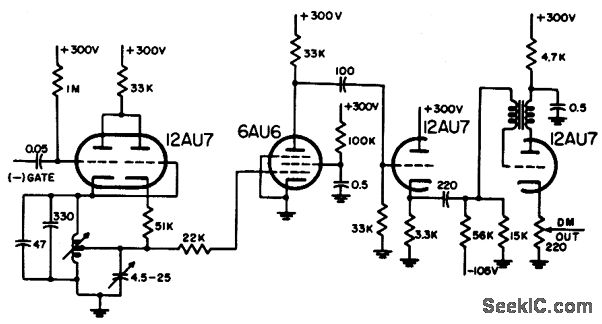

Uses switched Hartley oscillator, pentode amplifier-shaper, and series-triggered blocking oscillator to generate 1-mile distance marks in airborne search radar. Frequency dividers are used for 10- and 20-mile marks.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, p N8-2.
