DMAl2 constitute a circuit diagram

Published:2014/3/6 20:13:00 Author: | Keyword: DMAl2 constitute a circuit diagram, | From:SeekIC

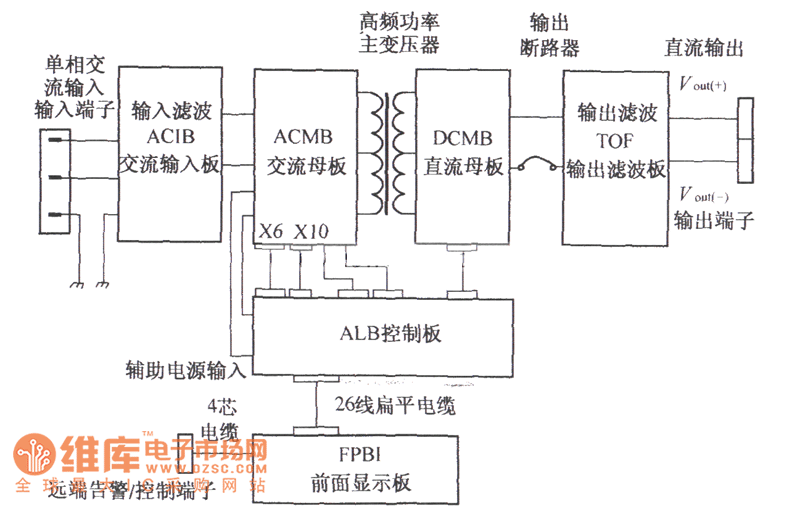

DMA12 intelligent switch rectifier module by the ac input board (ACIB), the exchange motherboard (ACMB), dc motherboard (DCMB), output filter plate (TOF), control panel (propagated), shown earlier (FPBI) six boards printed circuit board and input/output plugs, circuit breakers, inductance and transformer etc, as shown.
