DUAL_TRACKING

Published:2009/7/19 22:35:00 Author:Jessie | From:SeekIC

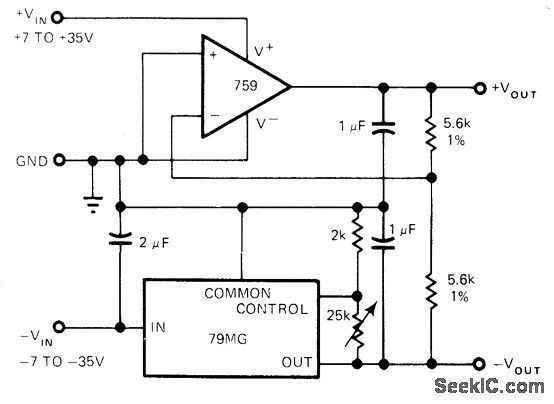

Uses one 759 power opamp for positive output, connected to track with 79MG negative voltage regulator having adjustable output. Common-mode range of 79MG includes ground, permitting operation from single supply. Circuit can also be built with two power opamps, one inverting and the other noninverting.-R. J. Apfel, Power Op Amps-Their Innovative Circuits and Packaging Provide Designers with More Options, EDN Magazine,Sept. 5, 1977, p 141-144.
