DUT07 ac distribution box electric principle diagram

Published:2014/3/5 20:28:00 Author: | Keyword: DUT07 ac distribution box electric principle diagram, | From:SeekIC

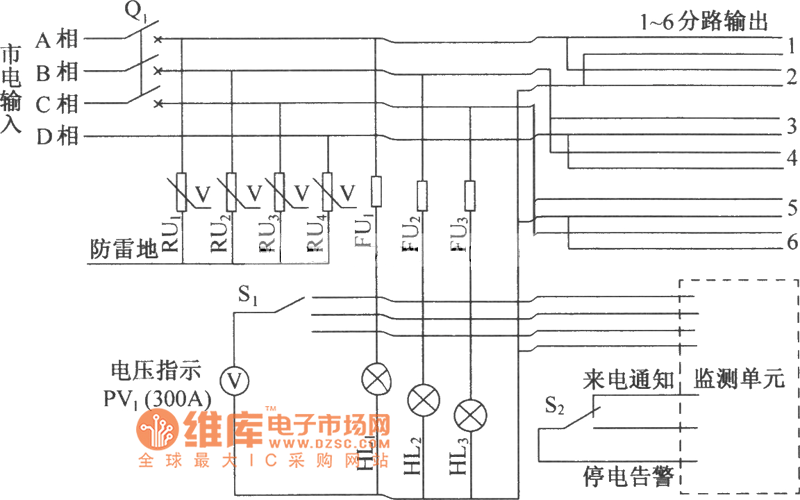

DUT07 high frequency switch power supply system is DZW75-48/50 (type ii) 50 rectifier module as the foundation, with JP50-50 ii) distribution box. As shown for P50 - exchange principle diagram of the distribution box.
