D_C_TRIGGER_DRIVES_HIGH_C_COAX

Published:2009/7/21 8:03:00 Author:Jessie | From:SeekIC

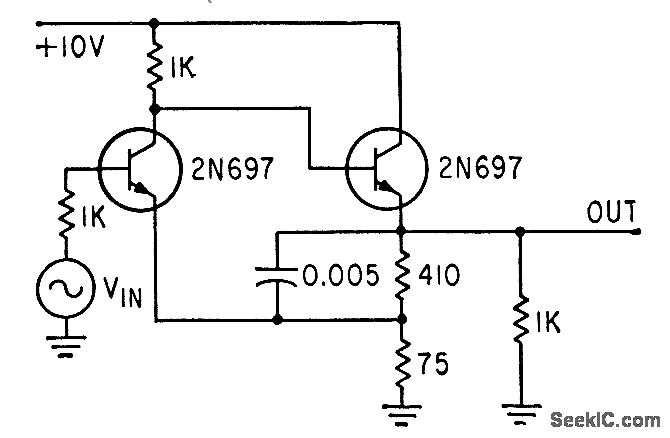

Emitter-follower incorporated in Schmitt circuit provides signal shaping needed to drive high-capacitonce cable with good rise time and few components.-G. Klein, Schmitt Trigger Drives Low Impedance Loads, Electronics, 36:33, p 28-29.
