Digitally_programmed_power_supply

Published:2009/7/20 21:31:00 Author:Jessie | From:SeekIC

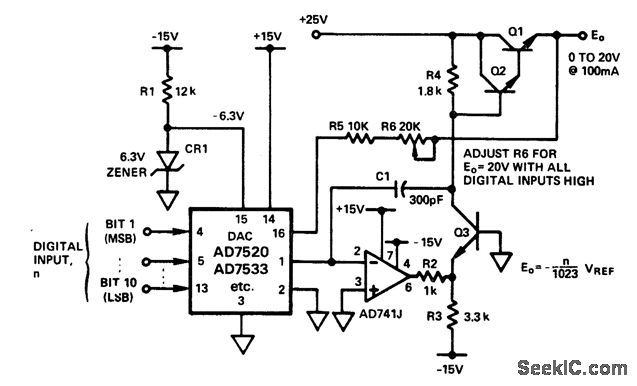

Digitally programmed power supply. A D/A convener with an op amp supplies voltage in accordance with a digital code (courtesy Analog Devices, Inc.).
