Dual_output_transformerless_converter

Published:2009/7/25 1:39:00 Author:Jessie | From:SeekIC

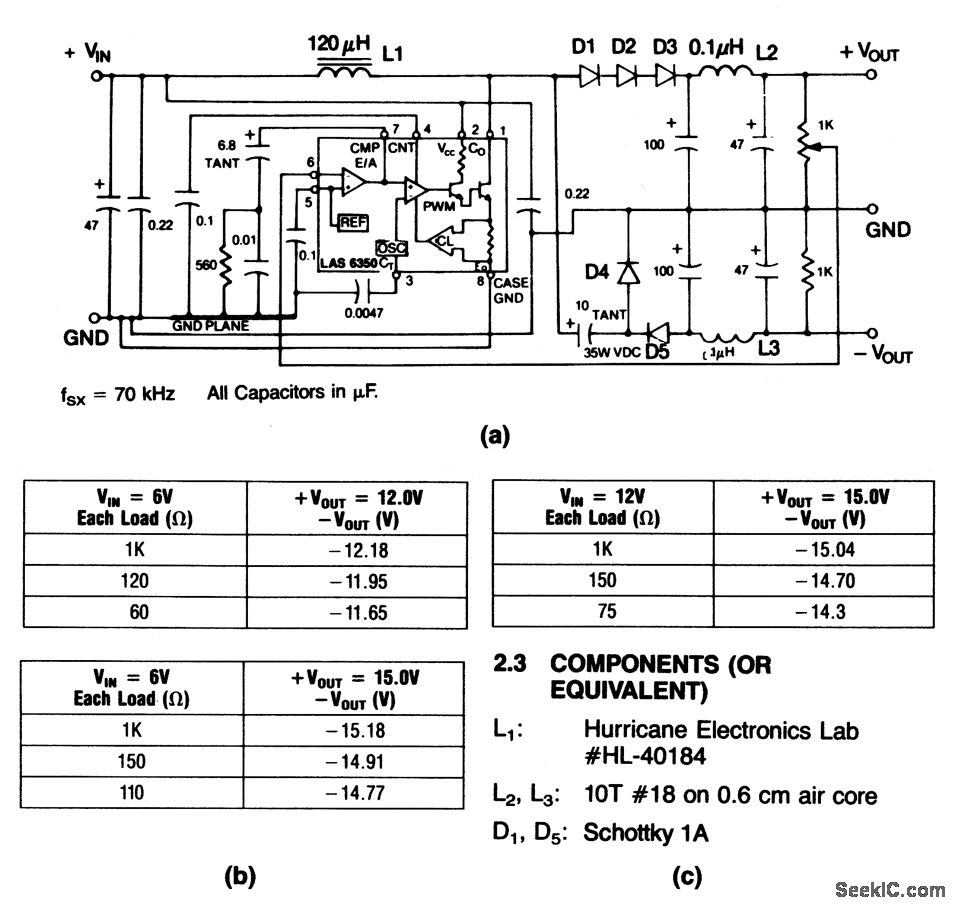

This circuit provides a dual output without transformers. Typical performance and component source information are shown in Figs. 4-30B and 4-30C, respectively.
