ELECTRONIC_CAPACITOR

Published:2009/7/16 6:07:00 Author:Jessie | From:SeekIC

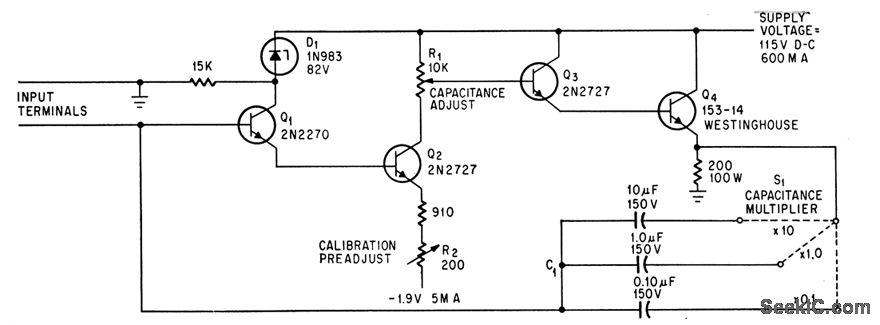

Two-terminal circuit provides capacitance values from 0.1 to 100 mfd, continuously variable in three ranges. Voltage ratting is +10 v and frequency range is d-c to 45 cps. Used in low-pass RC filter with adjustable cutoff frequency, in waveform analyzer.—D.L. Bergman, Electronic Capacitor is Continuously Variable, Electronics, 38:21, p 89
