Electronic_crowbar_circuit_using_an_SBS_and_a_triac

Published:2009/7/21 6:03:00 Author:Jessie | From:SeekIC

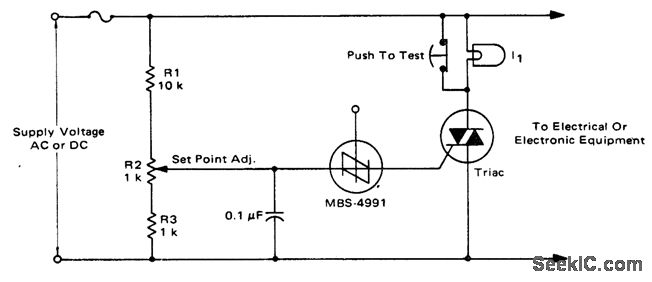

Electronic crowbar circuit using an SBS and a triac. This circuit protects equipment by placing a short-circuit across the line, thereby blowing the fuse. It works on DC circuits as well as AC types since the SBS and triac are both bilateral devices (courtesy Motorola Semiconductor Products Inc.).
