FET_PNP_D_C_MILLIVOLTMETER

Published:2009/7/24 1:29:00 Author:Jessie | From:SeekIC

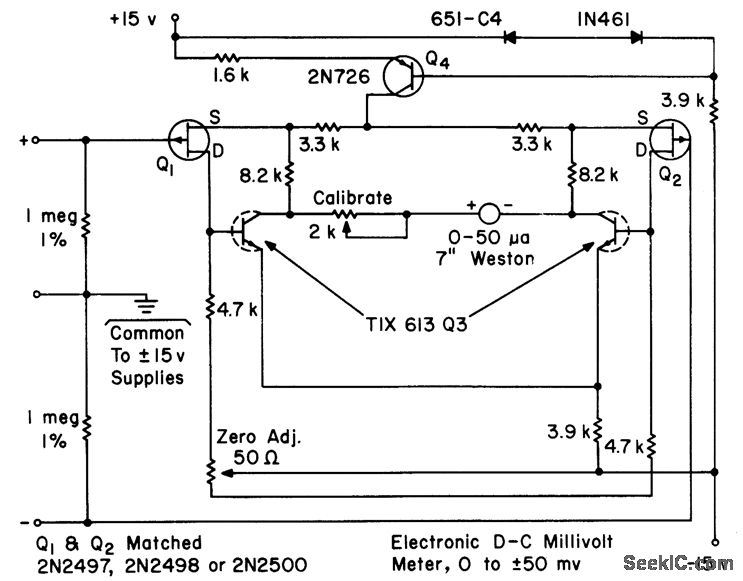

Differential amplifier uses pair of simple feedback amplifiers having voltage gain of 3, output impedance of 50K, input sensitivity of 20. meg/v, and common mode rejection ratio of 1,000 to 1.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill, N.Y., 1966, p 136.
