FLYBACK_BLANKING

Published:2009/7/19 20:56:00 Author:Jessie | From:SeekIC

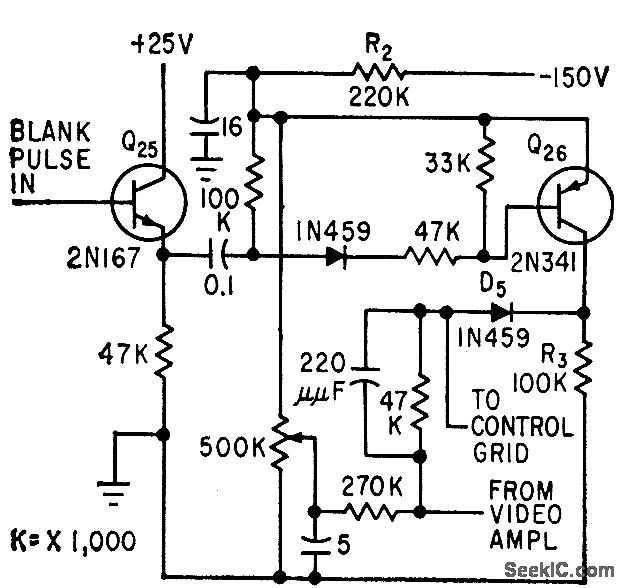

Amplifies blanking pulse from monostable mvbr sweep circuitto level required for blanking crt screen. Q26, normally nonconducting, is driven to saturation by blanking pulse, thereby applying high negative voltage to crt control grid.-C. E. Veazie, Transistorized Radar Sweep Circuits Using Low Power, Electronics, 32:26, p 46-47.
