FOCUS_COLT_REGULATOR

Published:2009/7/16 20:36:00 Author:Jessie | From:SeekIC

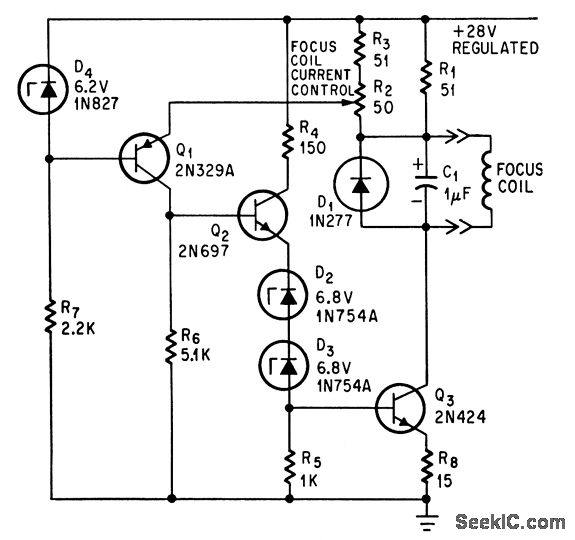

Regulation is 0.5% for current range of 220 to 270 ma, for magnetic focus coil of crt, between 25℃ and 65℃.-A.E. Popodi, Reliable Repertoire Of Display Circuits,Electronics,38:2,p 60-66.
