Flyback_converter

Published:2009/7/25 1:51:00 Author:Jessie | From:SeekIC

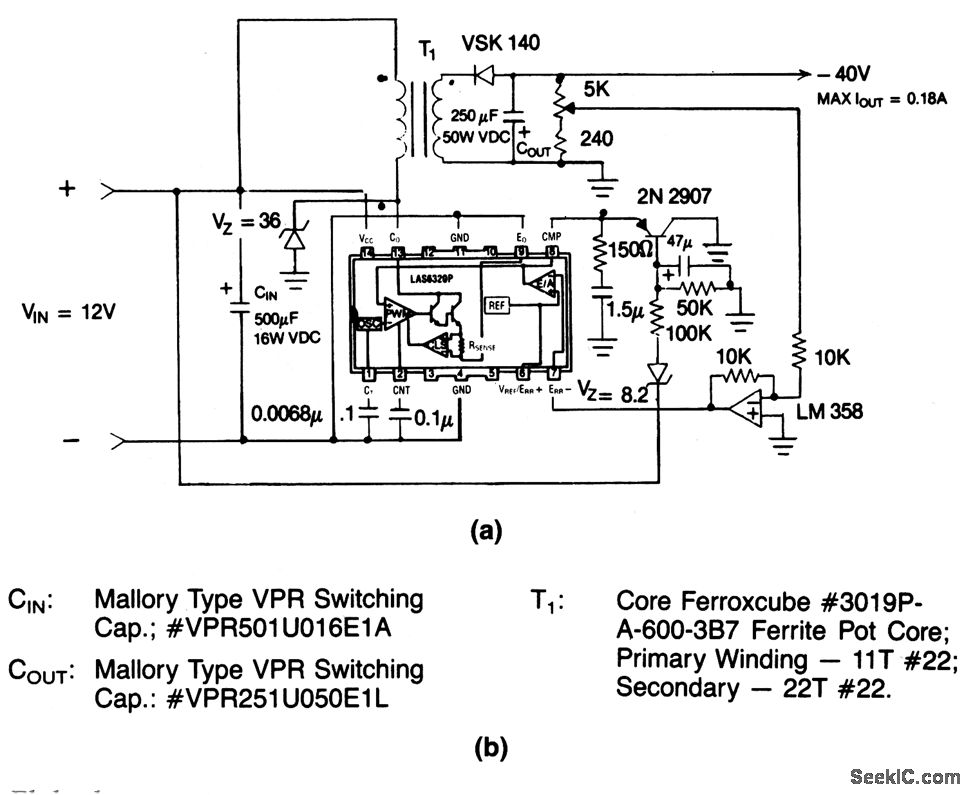

This circuit provides a -40-V output at 0.18 A from a +12-V input.Component source information is given in Fig. 4-37B.
