Four_channel_sequencing_multiplexer

Published:2009/7/20 6:21:00 Author:Jessie | From:SeekIC

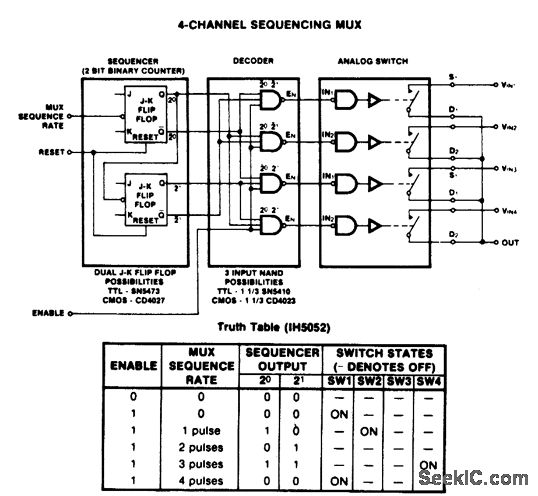

Four-channel sequencing multiplexer. The analog switch package is an Intersil IH5052 16-pin CMOS DIP (courtesy Intersil, Inc.).
