Full bridge inverter circuit full bridge inverter circuit diagram

Published:2014/2/18 21:52:00 Author: | Keyword: Full bridge inverter circuit full bridge inverter circuit diagram, | From:SeekIC

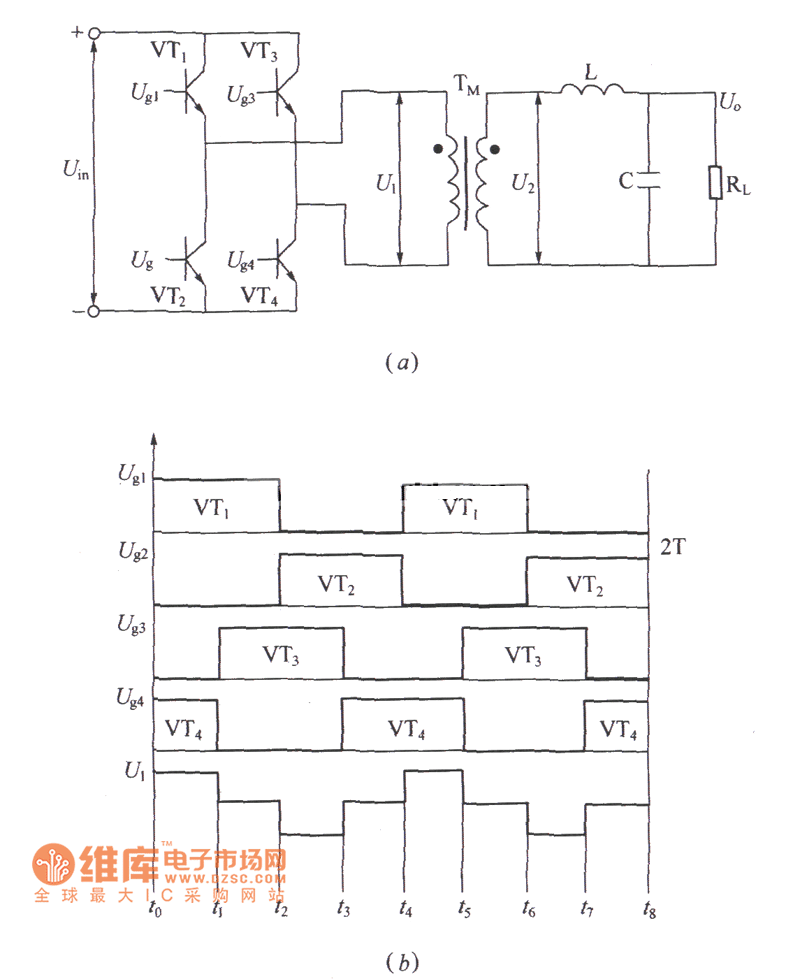

Single-phase inverter circuit is push-pull type, half bridge type and bridge type, among them, the full bridge inverter circuit for use in the most common. Single phase full bridge inverter circuit principle as shown in figure (a). (b) excitation signal and the output voltage waveform.
