G_M_COUNTER_AND_IONIZATION_GAGE

Published:2009/7/19 21:41:00 Author:Jessie | From:SeekIC

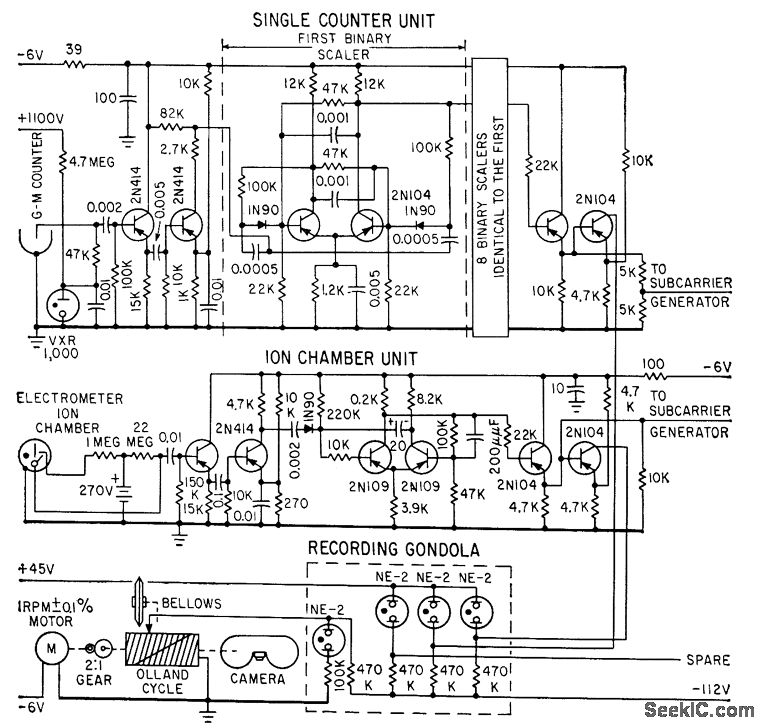

Used to correlate cosmic radiation intensity with other ionospheric and geomagnetic phenomenom. G-M counter provides negative pulse that is differentiated, shaped, and amplified in circuits similar to that of ion chamber. Counter rate is scaled down by 9-stage binary sealer before square wave output is fed to telemetering unit.-L. E. Peter-son R. L. Howard, and J. R. Winckler, Bal-loon Gas Monitors Cosmic Radiation, Electronits, 31:45, p 76-79.
