G_M_DRIVE_FOR_SCALE_OF_64_COUNTER

Published:2009/7/17 1:37:00 Author:Jessie | From:SeekIC

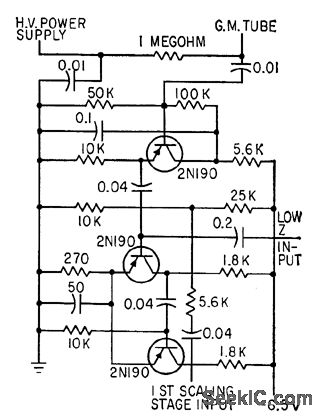

Shapes pulses from Geiger-Muller tube and uses one-shot mvbr to drive first scaling stage.-F. E. Armstrong, Battery Powered Portable Staler, Electronics, 33:19, p 74-75.
