HIGH_POWER_ONE_SHOT

Published:2009/7/17 3:37:00 Author:Jessie | From:SeekIC

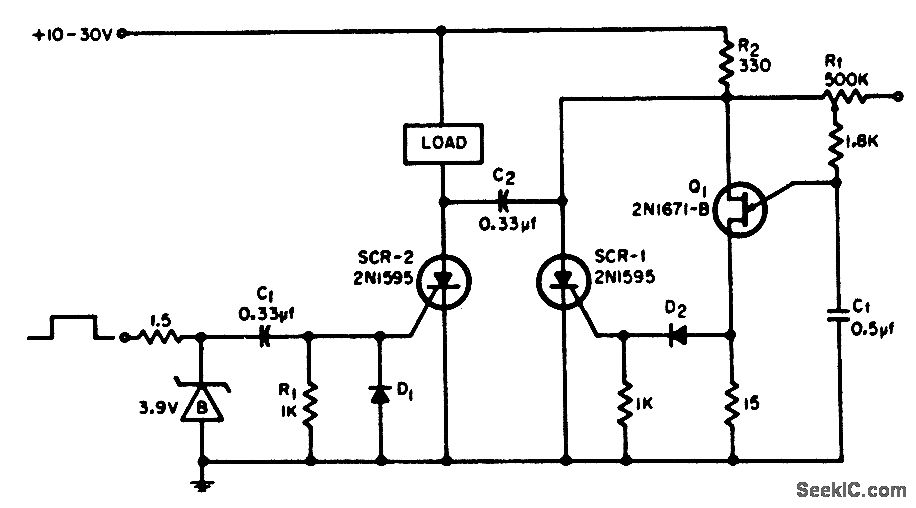

Operates from random-amplitude (10 to 28 V) square-wave input having 1 to 6.5 sec random duration, and switches 20-W load for adjustable period of 5 to 200 millisec. Can easily be adapted for transient detection, pulse-width adjustment, and time delays.-G. T. Pennell, High-Power One-Shot Multi, EEE, 12:9, p 62.
