HIGH_VOLTAGE_GENERATOR

Published:2009/7/16 21:03:00 Author:Jessie | From:SeekIC

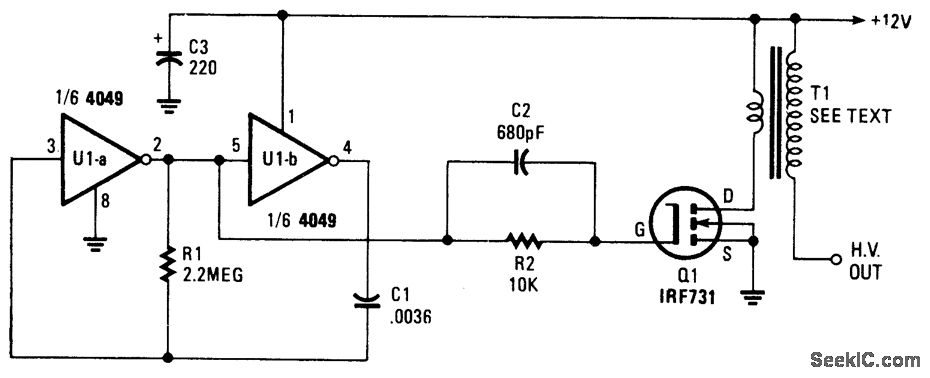

A 4049 Hex inverter drives an IRF731 hex FET. The 4049 is configured as an oscillator. Q1 should be heatsinked. T1 is an auto ignition coil.
