HIGH_VOLTAGE_SUPPLY

Published:2009/6/25 1:50:00 Author:May | From:SeekIC

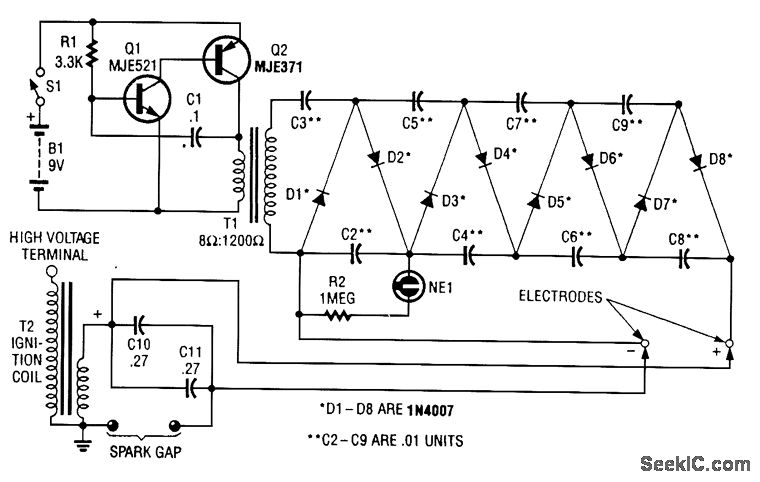

This circuit uses a transistor oscillator and a voltage multiplier to charge C10 and C11 to a high voltage. When the spark gap breaks down, T2 produces a high-voltage pulse via the capacitance discharge of C10 and C11 into its primary. T2 is an auto ignition coil.
