HM91620B-A Intergrated Circuit of PC Dialing

Published:2011/5/10 9:56:00 Author:Borg | Keyword: Intergrated Circuit, PC Dialing | From:SeekIC

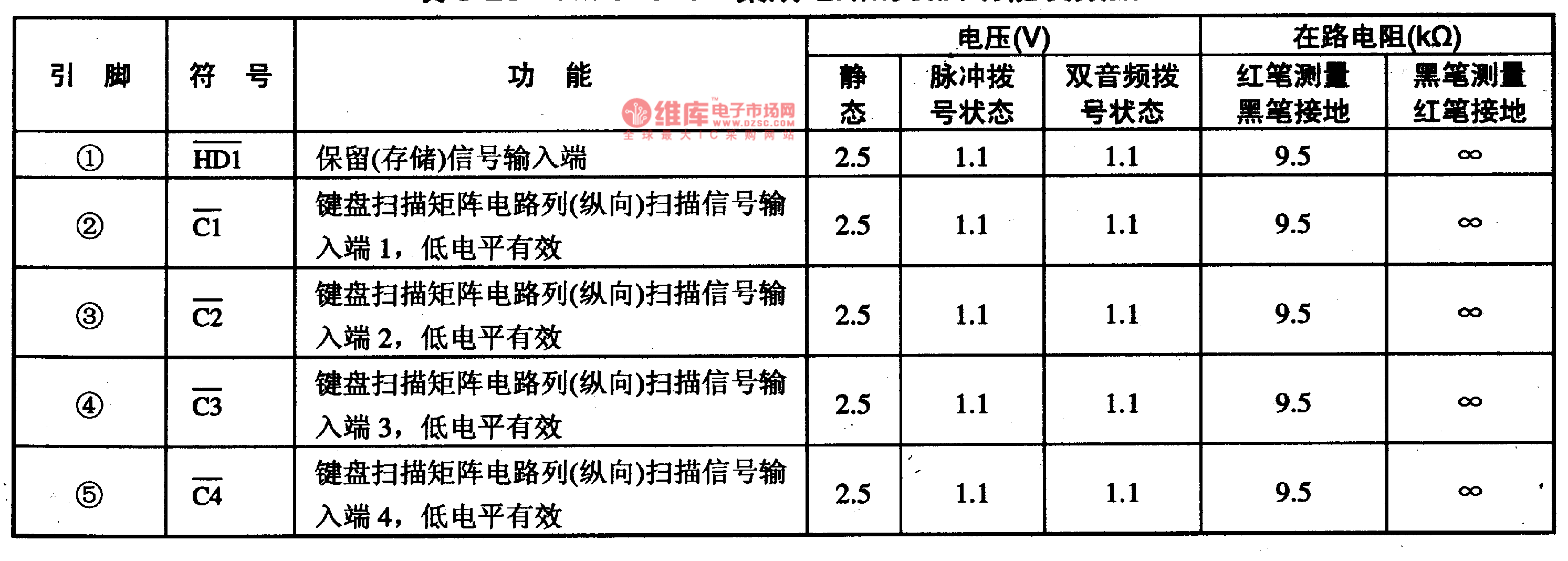

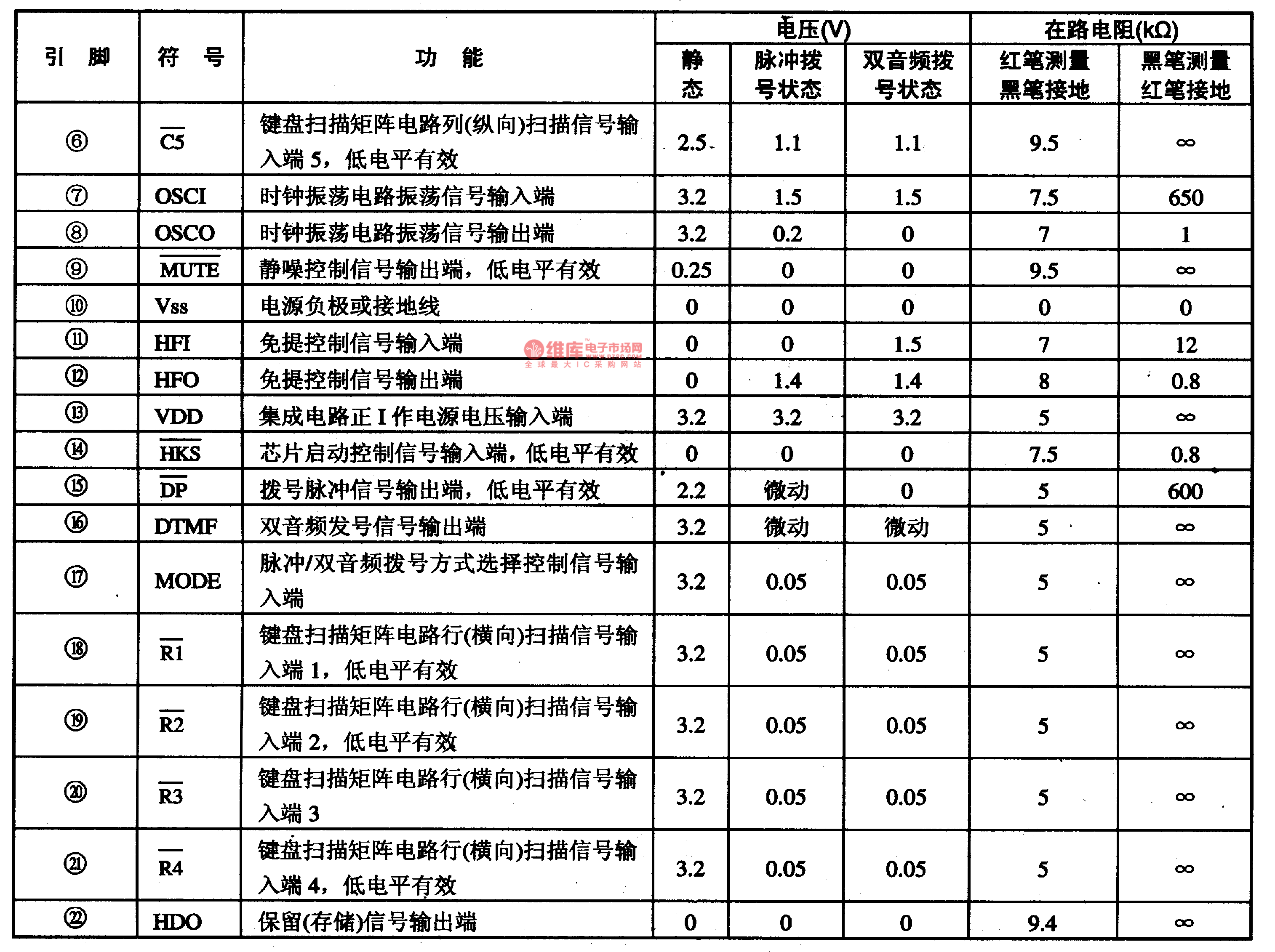

HM91620B is an intergrated circuit of PC dialing which is used in all kinds of phones. HM91620B is pinned in dual in-line packages with 22 pinnings, whose pin functions and data are listed in Table 1-1. Table 1-1 pin functions and data of HM91620B
