HT9215D-The Intergrated PC Dialing Circuit

Published:2011/6/14 23:25:00 Author:Borg | Keyword: Intergrated Circuit, PCs | From:SeekIC

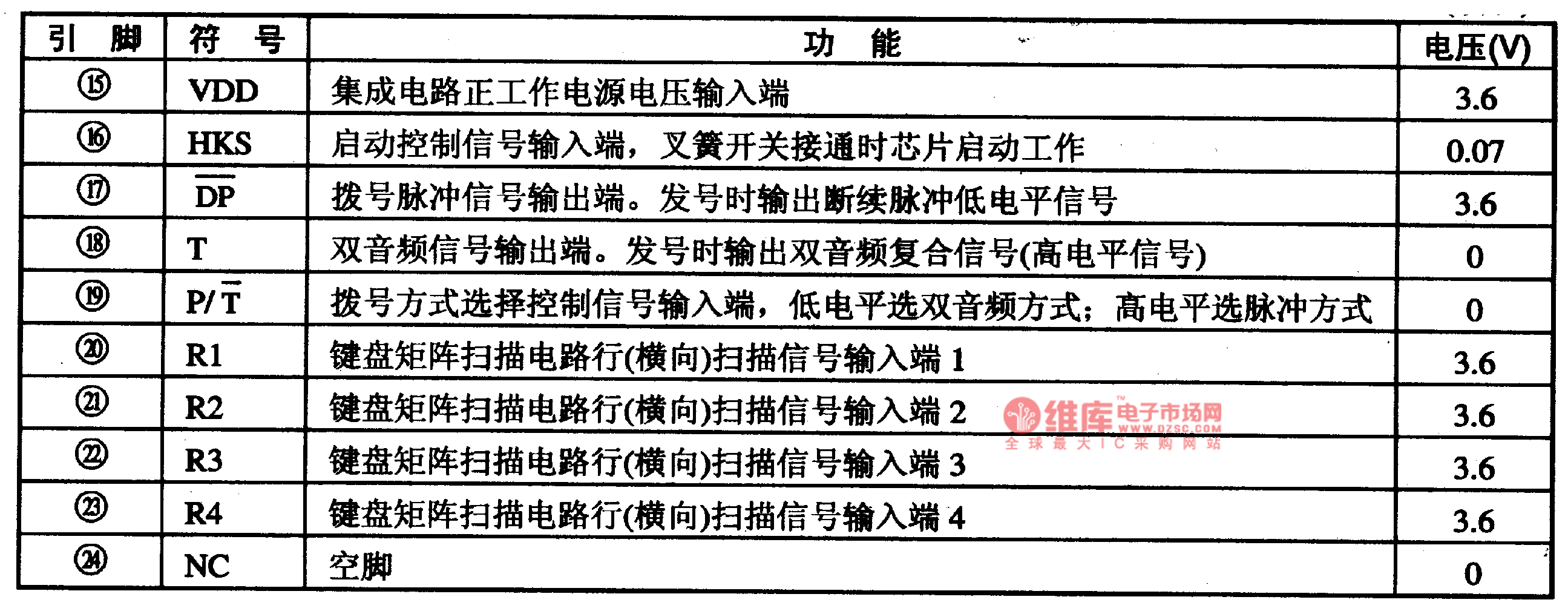

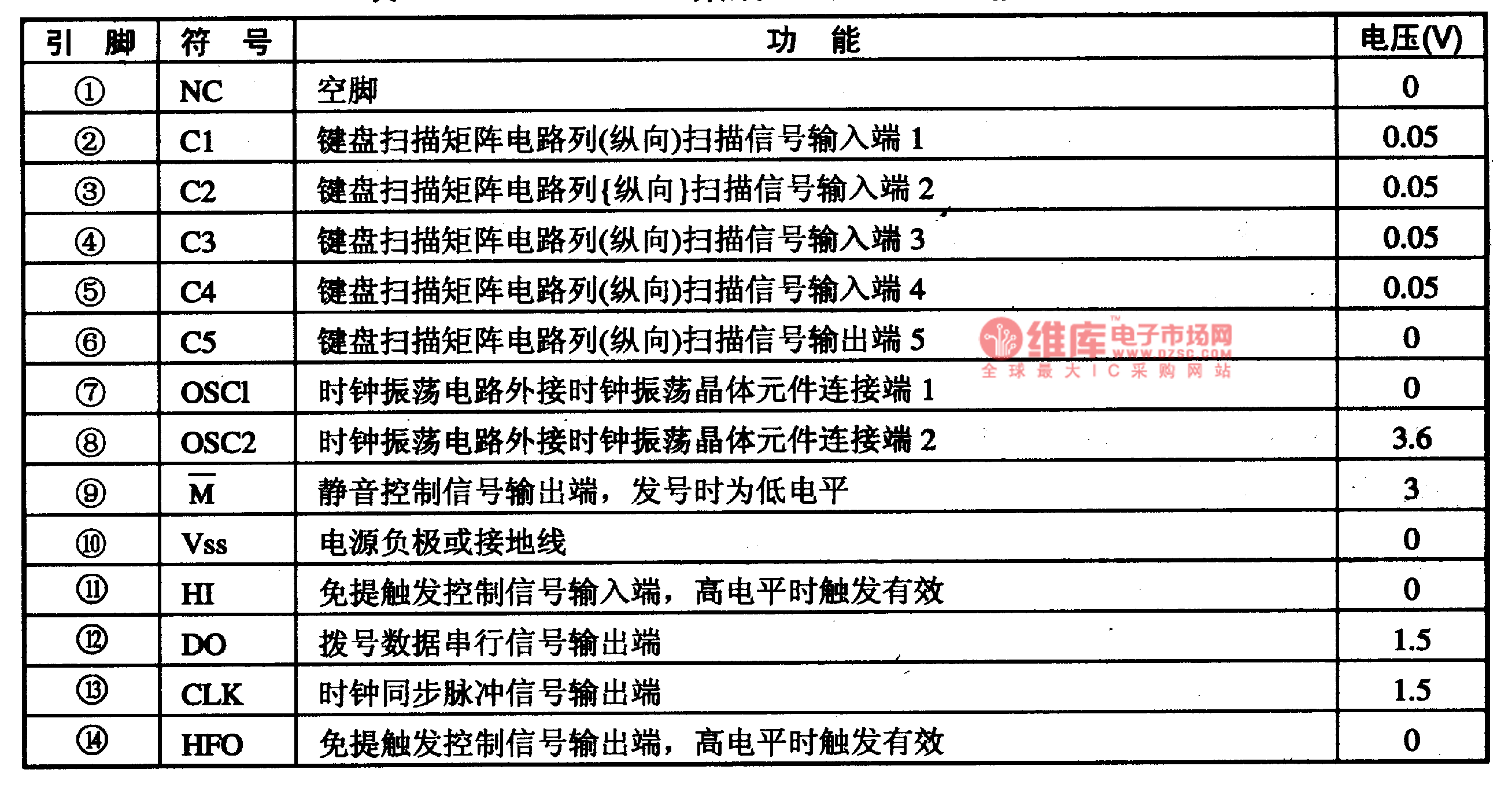

The HT9215D intergrated circuit of PC dialing is widely used in all kinds of phones. It is pinned in dual in-line packages with 24 pinnings, whose pin functions and data are listed in Table 1-1. le Table 1-1 pin functions and data of HT9215D
