HY8000A series of series, parallel application circuit diagram

Published:2013/12/30 20:48:00 Author: | Keyword: HY8000A series of series, parallel application circuit diagram, | From:SeekIC

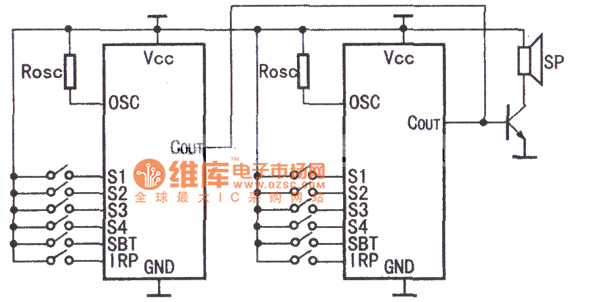

HY8000A series circuit can also according to the need to adopt more pieces of series, parallel or mixed use. Thus increasing their speech. Parallel connection can get multiple audio output. Multi-disc series, and connection circuit as shown. Practical application is very flexible and varied. For example, two parallel. When using one piece can be broadcast voice. Another play background music.
