High_current_battery_splitter

Published:2009/7/24 0:27:00 Author:Jessie | From:SeekIC

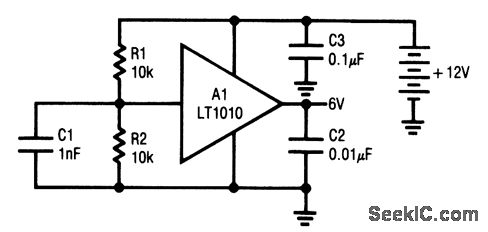

This circuit can source or sink up to ±150 mA with only 5 mA quiescent current. The value of C2 can be increased as necessary to absorb current transients.
