High_efficiency_converter_with_floating_output

Published:2009/7/25 2:16:00 Author:Jessie | From:SeekIC

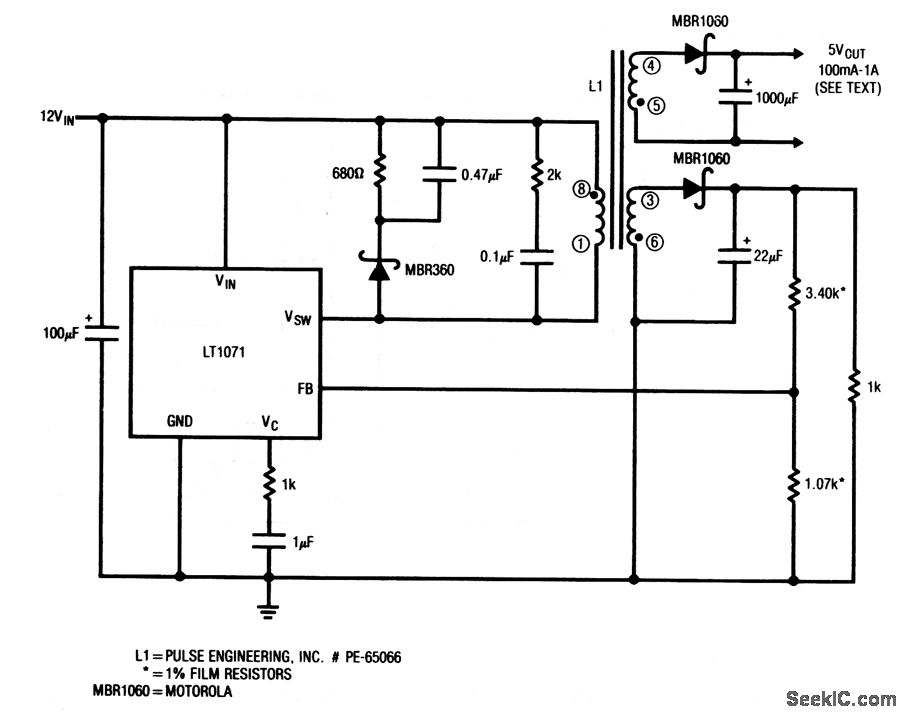

This circuit provides 5-V output at 1 A for a 12-V input.Regulation stays within ±100 mV from 100％ to 100％ of output rating, with excursion exceeding 900 mV at no load．Notice that the outputis fully isolated．
