High efficiency current adjustable lead-acid battery charger circuit

Published:2011/7/17 21:01:00 Author:TaoXi | Keyword: High efficiency, current, adjustable, lead-acid battery, charger | From:SeekIC

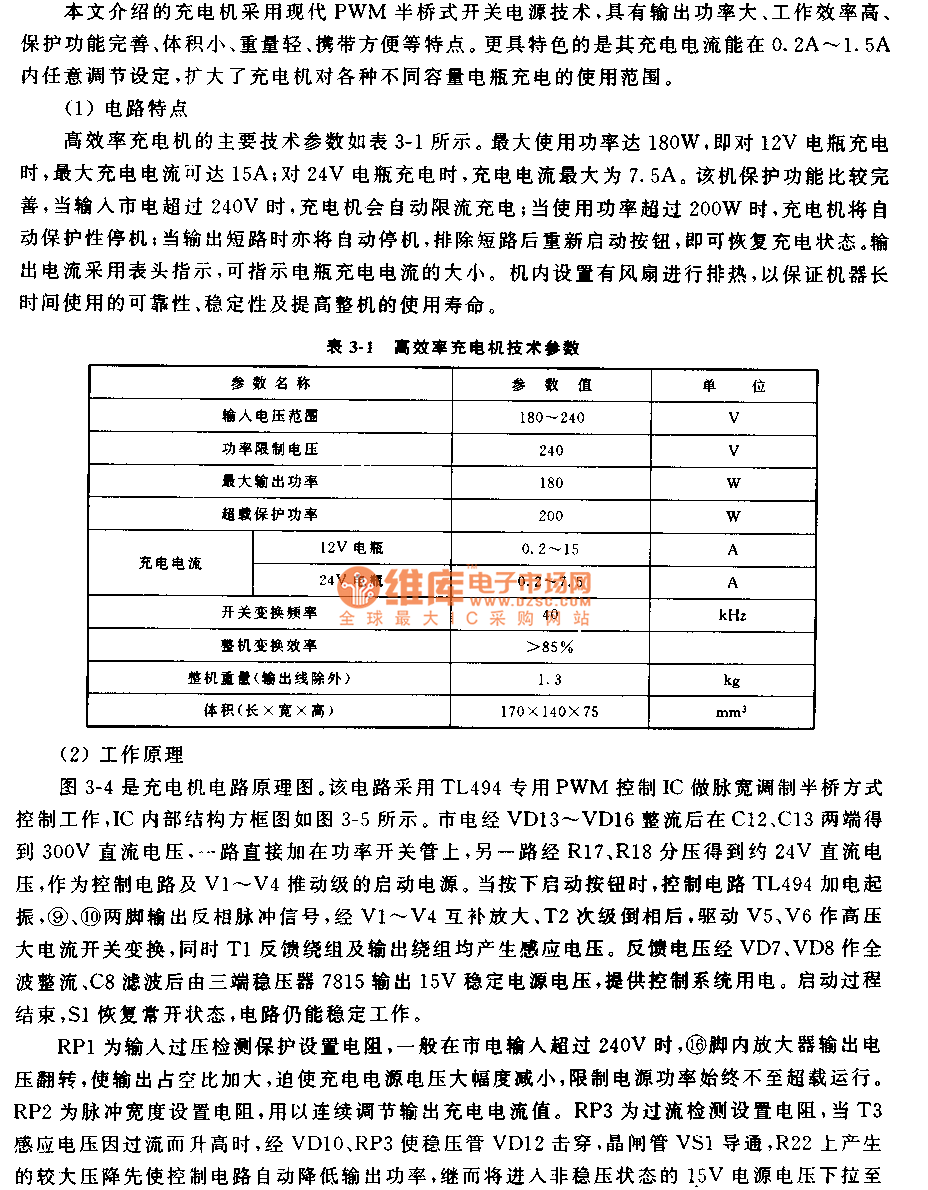

The main technical parameters of the high efficiency charger is as shown in table 3-1. The maximum power is 180W, when it charges the 12V storage battery, the maximum charging current is 15A; when it charges the 24V storage battery, the maximum charging current is 7.5A. This device has the perfect protection function, when the input city electricity is more than 240V, the charger will change into the current-limit chagring state automaticly; when the power is more than 200W, the charger will change into the protective stop state automaticly; when the output is short circuit, it will change into the protective stop state too, and after you excluding the short-circuit and restart the button, it will recover the charging state.
