IC_battery_backup_lithium_battery

Published:2009/7/24 5:09:00 Author:Jessie | From:SeekIC

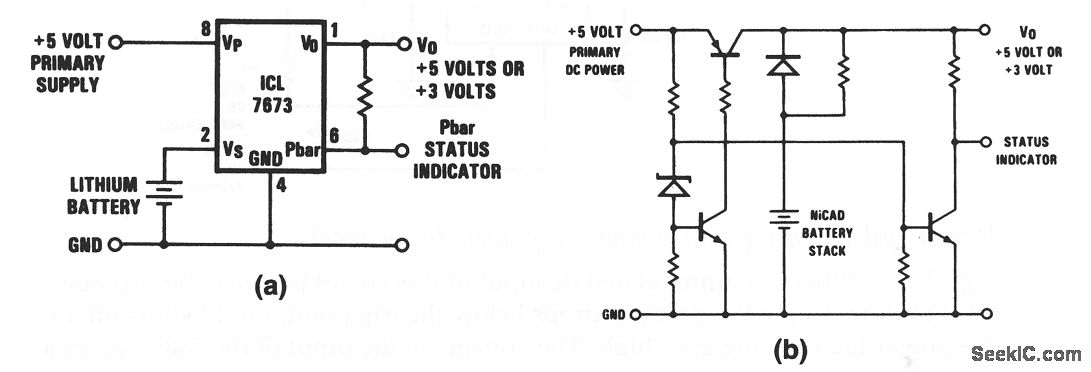

The circuit of Fig.9-19A uses single ICL7873 to replace a typical discrete-component battery-backup system, such as shown in Fig. 9-19B.
