LASER_FLASH_TUBE_SUPPLY

Published:2009/7/14 4:38:00 Author:May | From:SeekIC

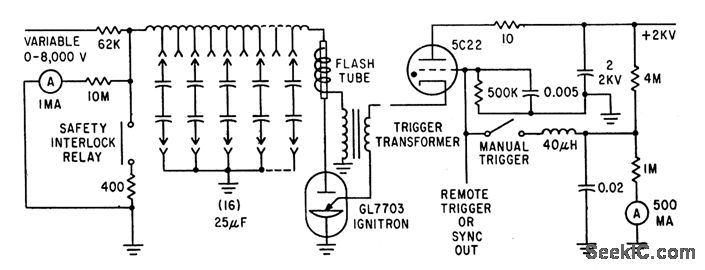

Variable pulse forming network sends rectangular pulses of current through lash tube when network is discharged by ignitron used as switch. Resulting pump action on ruby crystal then produces laser beam for optical ranging up to 3 miles.-M. L. Stitch, E. J. Woodbury and J. H. Morse, Optical Ranging System Uses Laser Transmitter, Electronics, 34:16, p 51-53.
