LASER_POWER_SUPPLY_AND_STARTING_CIRCUIT

Published:2009/6/16 23:34:00 Author:May | From:SeekIC

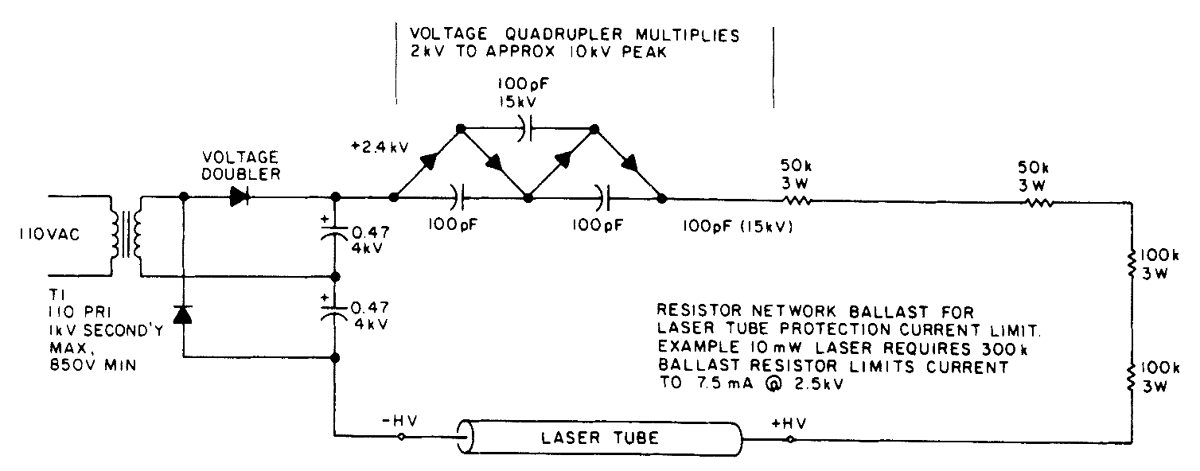

This circuit delivers 10 kV peak, then limits current to 7.5 mA @ 2 kV. The resistors shown provide ballasting. The starting circuit cannot maintain the 10 kV under load and appears as a seriespass circuit with little drop in voltage.
