LED tune indication circuit

Published:2011/4/7 23:06:00 Author:Nicole | Keyword: LED, tune indicating | From:SeekIC

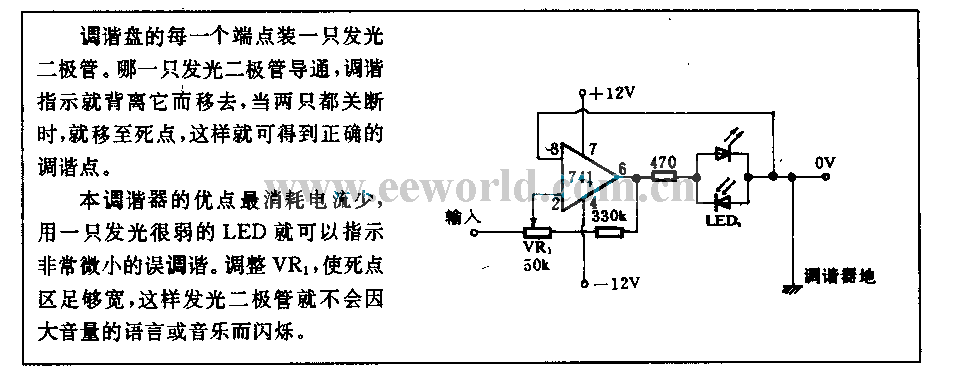

Connecting a LED to each endpoint of tune disk. If one of LEDs turns on, tune indication will depart from it and remove, when two LEDs are all off, it will move to dead point, then it can obtain true tuning point. The advantage of this tuner is minimum current consumption, even using a very weak LED, it also can indicate tiny mistaken tuning. To adjust VR1, broaden tuning point zone enough, then LED will not flashing because of the loud language or music.
