LOGIC_GATE_CURRENT_BOOSTER

Published:2009/7/16 22:58:00 Author:Jessie | From:SeekIC

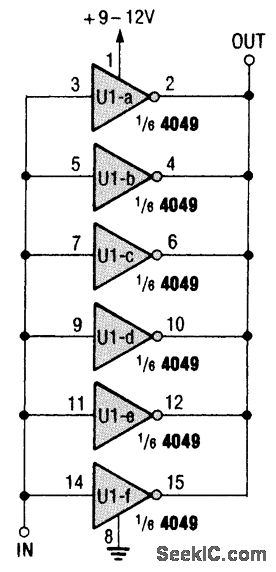

By connecting all six gates of a 4049 hex inverting buffer in parallel, you can obtain a much higher output current than would otherwise be available.
