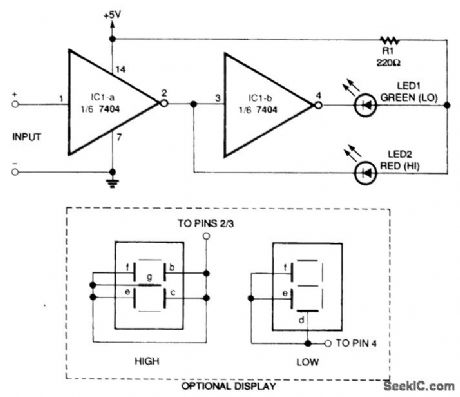

In this logic probe circuit, the red LED indicates logic high and the green indicates logic low, The optional use of an LED seven-segment readout is also shown.
