LUNAR__PROBE__TRANSMITTER

Published:2009/7/19 22:10:00 Author:Jessie | From:SeekIC

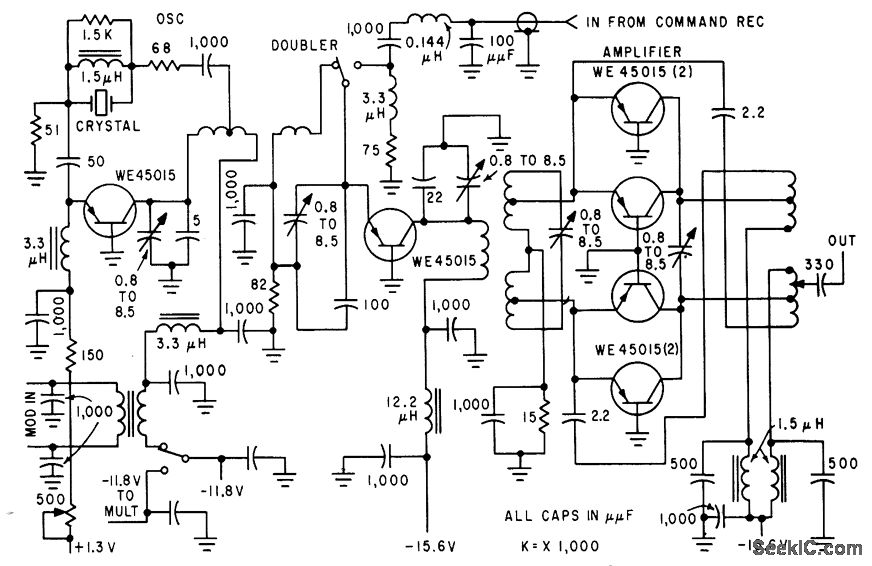

Five subcarrier channels are rsed in f-m/p-m systems to transmit ion density, two levels of micrometeorite particle impacts, magnetic field strength, and compartment temperature. Strength, and compartment temperature. Output stage uses four transistors in push-pull parallel to give 400mv output.-R. R. Bennett et al., Circuits for Space Probes, Electronics, 32:25, p 55-57.
