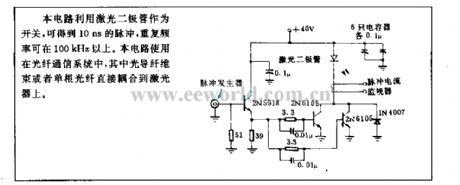

Laser diode singal source circuit

Published:2011/4/6 4:11:00 Author:Nicole | Keyword: laser diode, singal source | From:SeekIC

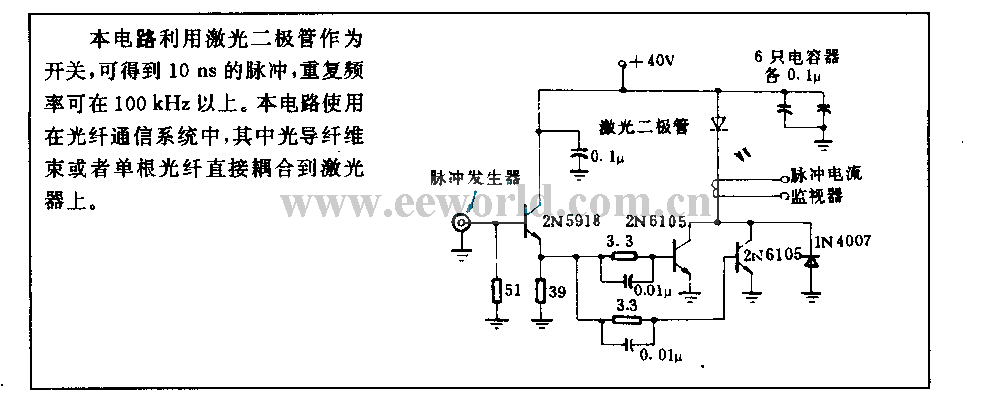

This circuit uses laser diode as switch, can obtain 10ns pulse, the repetition rate is more than 100kHz. This circuit is used in optical fiber communication system, the fiber-optic bundle or single fiber can be coupled to laser.
