MECHANICAL_COUNTER_DRIVE

Published:2009/7/19 21:37:00 Author:Jessie | From:SeekIC

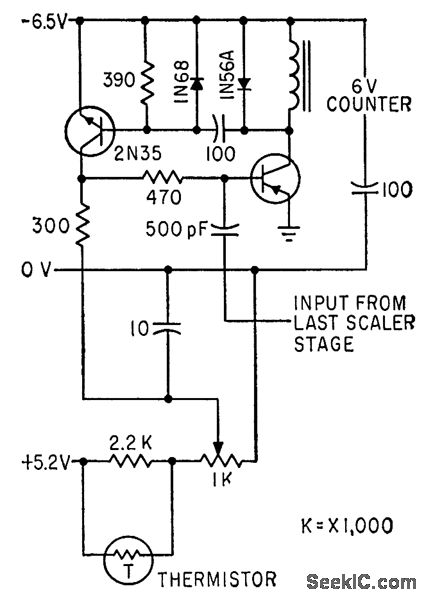

Takes output from scale-of-64 circuit and converts to 40-millisec square-wave pulse by means of complementary mvbr, to drive coil of mechanical register, once for every 64 pulses from G –M tube,-F, E. Armstrong, Battery Powered Portable scaler Electronic, 33:19 74-75.
