MICROMODULE_FOR_16_MC_CLOCK_RAIE

Published:2009/7/24 1:42:00 Author:Jessie | From:SeekIC

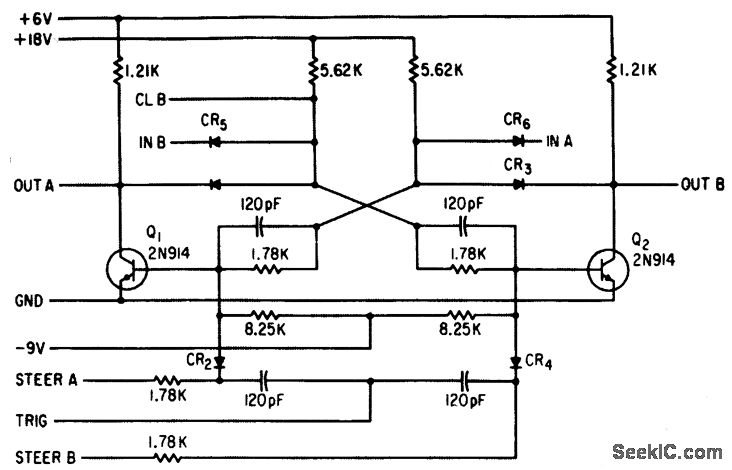

Flip-lop arrangement of two standard gales, with capacitor-resistor-diode gates fled to bases for trigger input, operates under worstcase temperature conditions with two standard gate loads.-A. S. Rettig, Computers in the Front Lines: Micromodules Make it Possible, Electronics, 36:1, p 77-81.
