MULTIPLEX_DRIVER

Published:2009/7/19 22:01:00 Author:Jessie | From:SeekIC

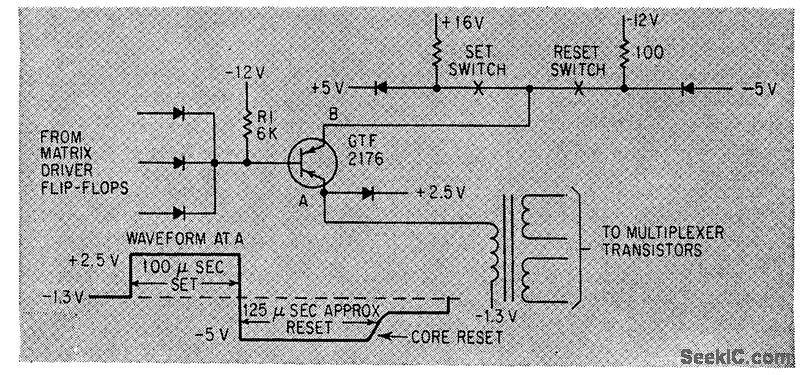

Diode matrix drives bilateral transistors similar to core memory drivers. Drive circuit is regulated to within 10%. -J. V. Dirocco and J. W. Peghiny, Low.Level Encoding Approach; Latest Details of Titan II Telemetry, Electronics, 35:47, p 36-39.
