MULTI_OUTPUT_BINARY

Published:2009/7/19 21:26:00 Author:Jessie | From:SeekIC

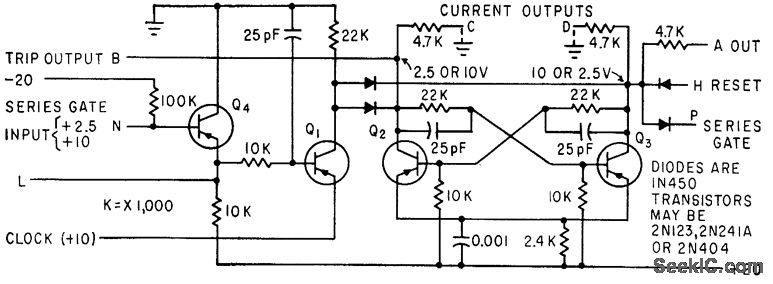

Basic binary circuit of 256-channel neutron analyzer is controlled by diode gates in coincidence with dock pulses derived from 200-kc crystal oscillator. Used in countdown, address overflow, memory cycle, sync, and gate stages.-E. J. Wade, Digital Instrumentation for Nuclear Research Tests, Electronics, 33:43, p 68-71.
