NE602_RF_TRANSLATOR_CIRCUIT

Published:2009/7/17 3:09:00 Author:Jessie | From:SeekIC

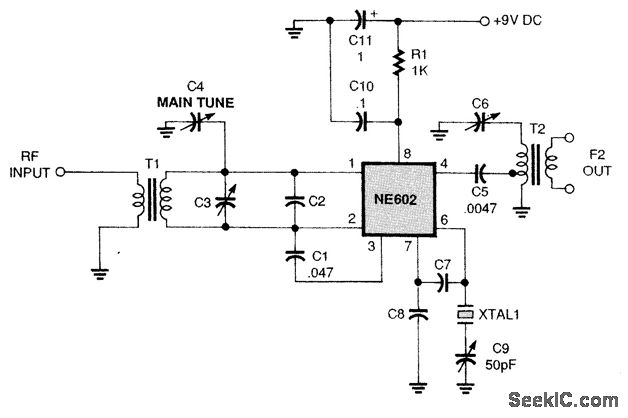

This circuit shows how an NE602 is used as an RE translator or mixer in a typical receiver application. Component values depend on operating frequency.
