NEGATIVE_TO_POSITIVE_SUPPLY_LOGIC_LEVEL_SHIFTER

Published:2009/6/25 3:13:00 Author:May | From:SeekIC

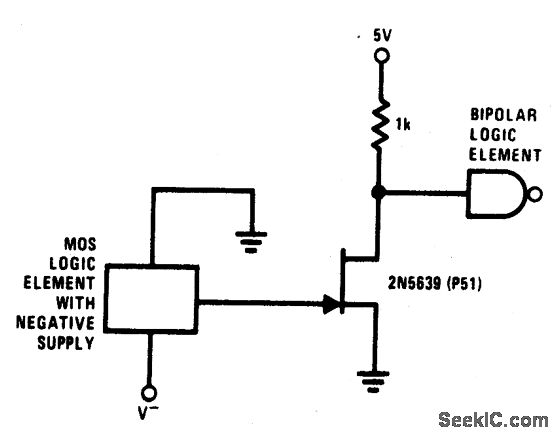

This simple circuit provides for level shifting from any logic function (such as MOS) operating from minus to ground supply to any logic level (such as TTL) operating from a plus to ground supply. The 2N5639 provides a low rdc (ON) and fast switching times.
