NEUTRON_COUNTING_TRANSMITTER

Published:2009/7/19 22:07:00 Author:Jessie | From:SeekIC

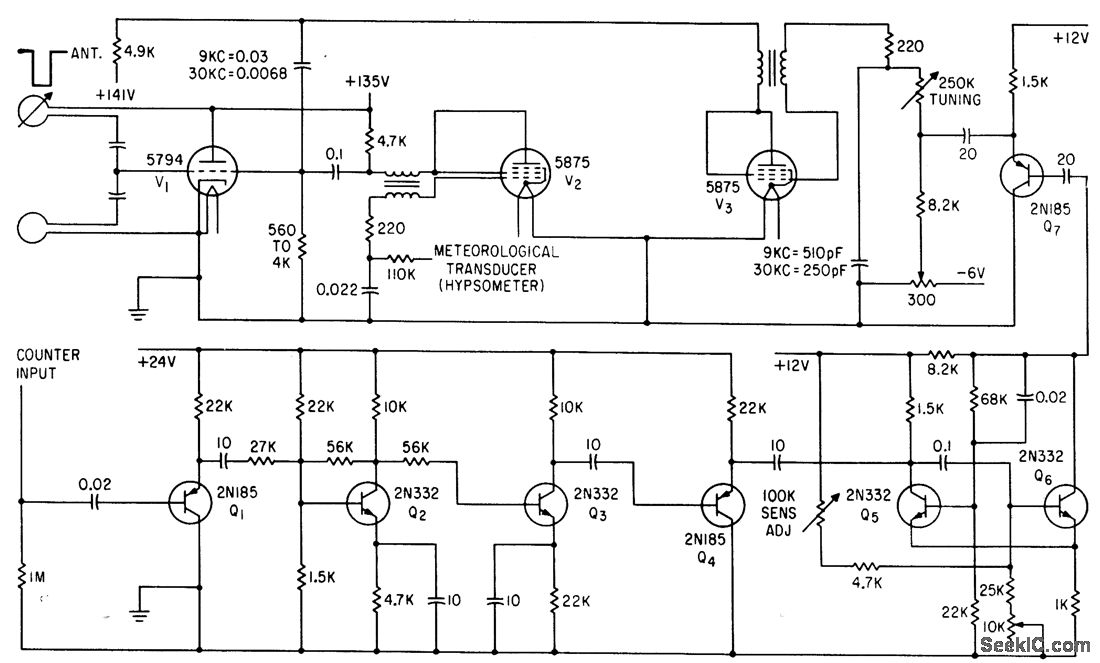

Used with cosmic-ray neutron counter to drive con ventional radiosonde. Signals above preset amplitude trigger subcarrier gate that in turn frequency-modulates r-f carrier.-L. Hillman and R. C. Haymes, Modifying a Telemetry System for Balloon-Borne Neutron Detection, Electronics, 34:11, p 60-63.
