Negative_step_up_dc_dc_converter

Published:2009/7/23 23:51:00 Author:Jessie | From:SeekIC

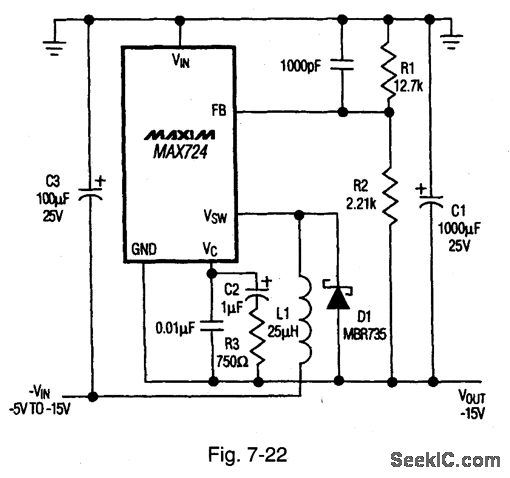

Figure 7-22 shows the MAX724 connected to provide a -15-V output with a -5-V to -15-V input. See Figs. 7-18 and 7-19 for pin configurations, and Fig. 7-20 for component suppliers. MAXIM EVALUATION KIT DATA Book, 1994, P. 3-138.
