O_20V_HIGH_PRECISION

Published:2009/7/19 22:07:00 Author:Jessie | From:SeekIC

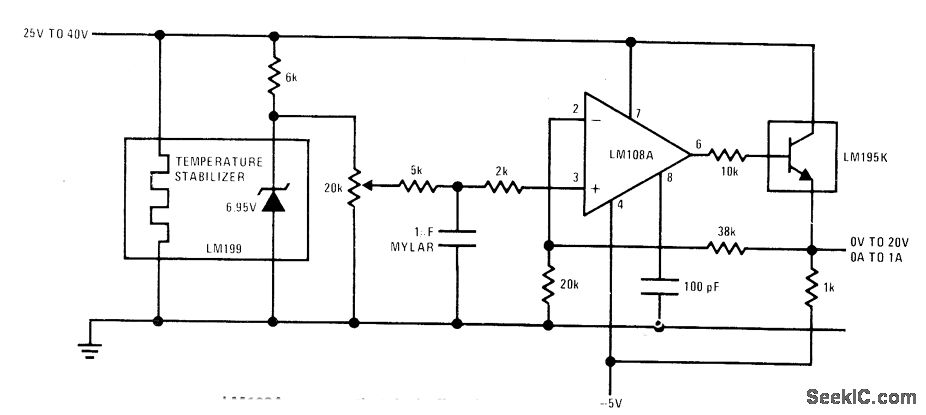

National LM199 temperature-stabilized 6.95-V reference feeds LM108A opamp that is buffered by LM195K power transistor IC which provides full overload protection.- Li near Applications, Val. 2, National Semiconductor, Santa Clara, AN-161,p6.
